Home  >  Plumbing  >  Valves  >  Gate  > IB647 1-1/4 HAMMOND GATE

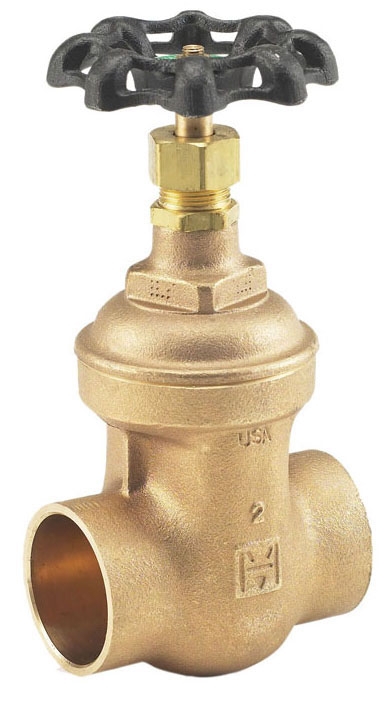

IB647 1-1/4 HAMMOND GATE VALVE SOLDER NON-RISING STEM 125WSP

Item #: 48929
Manufacturer Item: 0647000114
Manufacturer: TCG - HAMMOND VALVE
1-1/4" x 1-1/4", Soldered x Soldered, 125 PSI SWP/200 PSI WOG, Bronze, Non-Rising, Handwheel, Solid Wedge Disc, Gate Valve
48929

Gate

Actuation Type
Handwheel
Applicable Standard
MSS-SP-80 Type 1
Body Material
ASTM B62 Bronze
Bonnet Material
ASTM B62 Bronze
End Connection
Soldered x Soldered
End to End Distance
3.25 Inch
Handle Material
Malleable Iron
Inclusions/Features
ASTM B283 C37700 Brass (Packing Nut/Stuffing Box/Gland), AST
Pressure Rating
125 PSI SWP, 200 PSI WOG
Stem Design
Non-Rising
Stem Material
ASTM B62 Bronze
Type
Solid Wedge Disc
Application
Commercial
Wedge Material
ASTM B62 Bronze
Bonnet Type
Threaded
