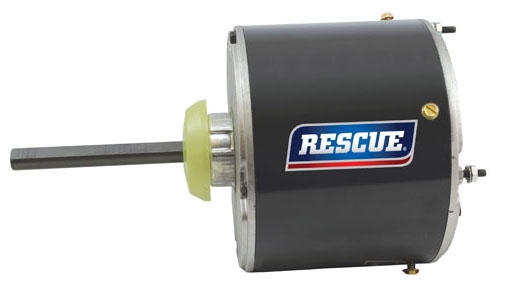

5465 NIDEC RESCUE CONDENSER MOTOR MULTI-HORSEPOWER 1075 RPM 230V

Item #: 61005
Manufacturer Item: 5465
Manufacturer: TCG - US MOTORS BY NIDEC
1/5 to 1/2 HP, 208 to 230 VAC 60 Hz 1-Phase, 3/1.3 A, 1075 RPM, 2-Speed, Reversible, TEAO, Condenser Fan Motor
61005

High Efficiency Design

Suitable for Use with 370 Volt Capacitor

Special Treated Rotor for Corrosion Protection

Automatic Reset Thermal Overload Protector

Continuous Duty, Air Over

condenser fan motors

Power Rating
1/5 to 1/2 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
3/1.3 Amp
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Number of Speeds
2
Enclosure Type
TEAO
Application
Commercial/Residential Condenser Fan
Insulation Class
B
Reversible
Yes
Mounting
Stud
Weight
15.43 Pound
Service Factor
1
