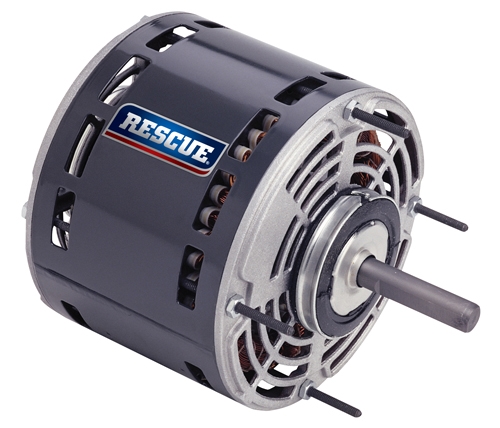

5461 NIDEC RESCUE BLOWER MOTOR MULTI-HORSEPOWER 208 230V

Item #: 61405
Manufacturer Item: 5461
Manufacturer: TCG - US MOTORS BY NIDEC
1/6 to 1/2 HP, 208 to 230 VAC 60 Hz 1-Phase, 3.6 A, 1075 RPM, 4-Speed, Reversible, OPAO, Blower Motor
61405

High Efficiency Design

Suitable for Use with 370 Volt Capacitor

Continuous Duty, Air Over

Automatic Reset Thermal Overload Protector

direct drive blower motors-Motors

Power Rating
1/6 to 1/2 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Motor FLA
3.6 Amp
Number of Speeds
4
Enclosure Type
OPAO
Mounting
Hub, Stud
Insulation Class
B
Application
Commercial/Residential Air Handler and Furnace
Reversible
Yes
Service Factor
1
Weight
16.56 Pound
