Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 1862 NIDEC CONDENSER MOTOR

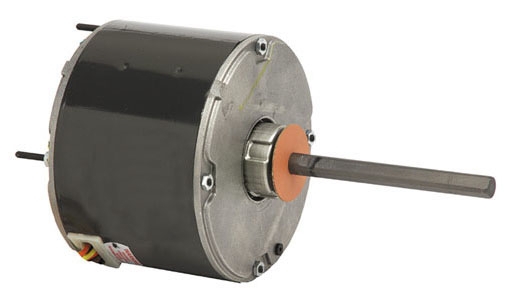

1862 NIDEC CONDENSER MOTOR 1/2hp 208-230V 1075RPM

Item #: 63082
Manufacturer Item: 1862
Manufacturer: TCG - US MOTORS BY NIDEC
1/2 HP, 208 to 230 VAC 60 Hz 1-Phase, 3.1 A, 1075 RPM, 1-Speed, Reversible, TEAO, Condenser Fan Motor
63082

Sleeve Bearings have All Angle Thrust System

Suitable for Use with 370 Volt Capacitor

Continuous Duty

30 Inch Leads

Automatic Reset Thermal Overload Protector

Extended Stud

Hubless Lead End

Drain Holes Both End

Reversible Rotation

condenser fan motors

Power Rating
1/2 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
3.1 Amp
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
TEAO
Application
Commercial/Residential Condenser Unit Fan Motor
Insulation Class
B
Reversible
Yes
Mounting
Band, Stud
Weight
15.8 Pound
Service Factor
1
