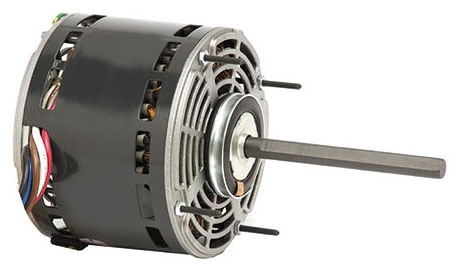

Actions1972 NIDEC BLOWER MOTOR 1 3hp 208-230v 1075/3sp
Item #:
63099
Manufacturer Item: 1972
Manufacturer:
TCG - US MOTORS BY NIDEC
1/3 HP, 208 to 230 VAC 60 Hz 1-Phase, 1.9 A, 1075 RPM, 3-Speed, Reversible, OAO, Blower Motor
Bearings have All Angle Thrust System
Suitable for Use with 370 Volt Capacitor
Continuous Duty, Air Over
24 Inch Leads
Automatic Reset Thermal Overload Protector
Connection and Capacitor Information Furnished in Nameplate Data
direct drive blower motors-Motors
Power Rating
1/3 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Motor FLA
1.9 Amp
Number of Speeds
3
Enclosure Type
OAO
Mounting
Band, Stud, 2.5 Inch Hub Ring
Insulation Class
B
Application
Commercial/Residential Direct Drive Fan and Blower
Reversible
Yes
Service Factor
1
Weight
10.86 Pound
