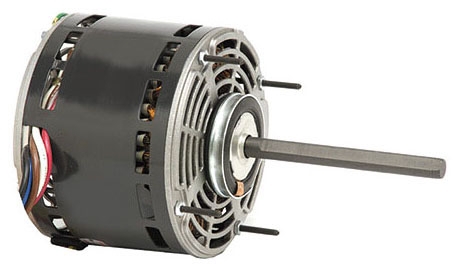

1973 NIDEC BLOWER MOTOR 1 2hp 208/230 1075/3sp

Item #: 63100
Manufacturer Item: 1973
Manufacturer: TCG - US MOTORS BY NIDEC
1/2 HP, 208 to 230 VAC 60 Hz 1-Phase, 2.9 A, 1075 RPM, 3-Speed, Reversible, OAO, Blower Motor
63100

Bearings have All Angle Thrust System

Suitable for Use with 370 Volt Capacitor

Continuous Duty, Air Over

24 Inch Leads

Automatic Reset Thermal Overload Protector

Connection and Capacitor Information Furnished in Nameplate Data

direct drive blower motors-Motors

Power Rating
1/2 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Motor FLA
2.9 Amp
Number of Speeds
3
Enclosure Type
OAO
Mounting
Band, Stud, 2.5 Inch Hub Ring
Insulation Class
B
Application
Commercial/Residential Direct Drive Fan and Blower
Reversible
Yes
Service Factor
1
Weight
17.29 Pound
