Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 3851 EMERSON CONDENSER

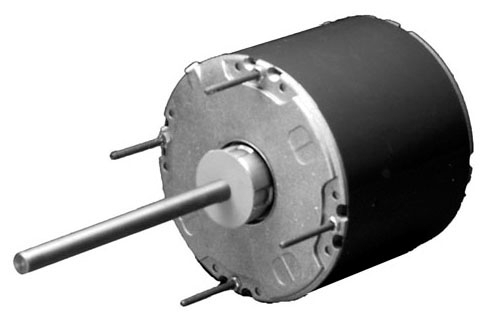

3851 EMERSON CONDENSER MOTOR 1/4hp 208/230v 1075 1sp

Item #: 63101
Manufacturer Item: 3851
Manufacturer: TCG - US MOTORS BY NIDEC
1/4 HP, 208 to 230 VAC 60 Hz 1-Phase, 1.7 A, 1075 RPM, 1-Speed, Reversible, ODPAO, Condenser Fan Motor
63101

Sleeve Bearings have All Angle Thrust System

Suitable for Use with 370 Volt Capacitor

Continuous Duty, Air Over

Automatic Reset Thermal Overload Protector

Extended Stud

Hubless Lead End

Drain Holes Both End

Extended Studs are 8 to 32 UNC Thread Unless Otherwise Noted

Double Flats on Shaft

Enclosed Endshield at Shaft End

Green Ground Lead

Water Slinger

Capacitor Mounting Holes in Frame Band

condenser fan motors

Power Rating
1/4 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
1.7 Amp
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
ODPAO
Application
Condenser Cooling Fan
Insulation Class
B
Reversible
Yes
Mounting
Hub, Stud
Weight
10 Pound
Service Factor
1
