Home  >  HVAC Service Parts  >  Motors  >  Belt Drive Motors  > 8100 NIDEC BELTED BLOWER

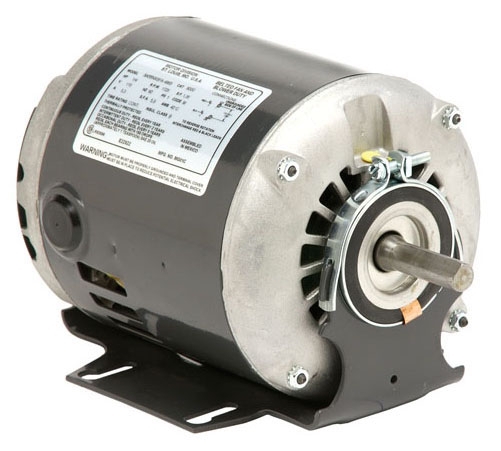

8100 NIDEC BELTED BLOWER MOTOR 1/3hp 115v 1725rpm

Item #: 63238
Manufacturer Item: 8100
Manufacturer: AD - NIDEC MOTOR CORPORATION
1/3 HP, 115 VAC 60 Hz 1-Phase, 6.4 A, 1725 RPM, 1-Speed, Reversible, ODP, Blower Motor
130801

Mars Direct Drive Furnace Blower Motor is Three Speed Standard Efficiency Model

Electrically Reversible and Include 2-1/4 Inch Resilient Rings for Base Mounting

All Angle Sleeve Bearings and have Open Air over Enclosure

Rheem Mounting Holes

1/2 Inch Extended through Bolts

Auto Thermal Overload Protected

direct drive blower motors-Motors

Power Rating
1/3 HP
Voltage Rating
115 Volt AC 1-Phase
Speed Rating
1075 RPM
Frequency Rating
60 Hertz
Motor FLA
6.1 Amp
Number of Speeds
3
Enclosure Type
OAO
Mounting
1-1/2 Inch Extended Through Bolt, 2-1/4 Inch Resilient Ring
Insulation Class
B
Application
HVAC, Blower
Reversible
Yes
Approval
UL, CUL
