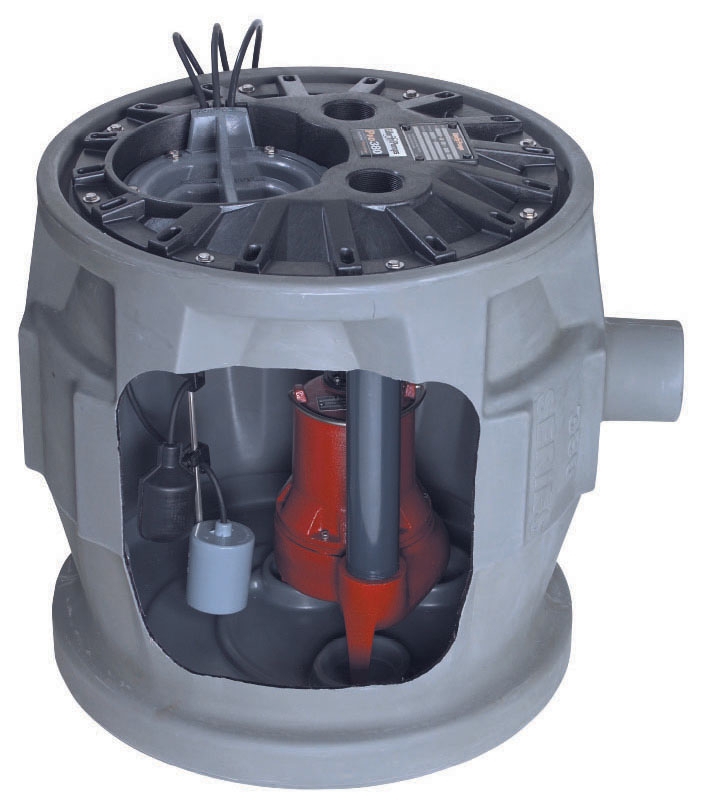

ActionsP382LE41 LIBERTY 4/10HP SEWAGE PACKAGE SYSTEM LARGE CAPACITY 115V 12A 2
Item #:
71262
Manufacturer Item: P382LE41
Manufacturer:
TCG - LIBERTY PUMPS
2" Discharge, No Hub x NPT, 125 GPM, 4/10 HP, 1725 RPM, 115 VAC 60 Hz, 10' Cord, Submersible, Simplex Sewage System
QuickTree® Technology Allows Easy Access and Removal of Switches without Disturbing Pump or Plumbing
Integrated Rubber Seals Permanently Attached to Cover
Unique Cord Seal Technology Integrated into the Inspection Cover
Shallow Basin Design (24 Inch) for Easier Installation in Difficult Soil/Bedrock Location
Integrally Molded Torque Stops Secure the Pump in its Proper Position
Completely Assembled
Sewage
Type
Submersible
Applicable Standard
CSA (Canada and US), SSPMA
Discharge Head
20 Foot
End Connection
No Hub x Threaded
Flow Rate
125 GPM at 5 Foot
Housing Material
Polyethylene
Inclusions/Features
QuickTree Technology, Integral Rubber Seal, Inspection Cover
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 12 Amp
Motor Type
Oil Filled, Hermetically Sealed, Thermal Overload Protection
Power Rating
4/10 HP
Shaft Material
Stainless steel
Shaft Seal Details
Carbon/Ceramic
Speed Rating
1725 RPM
Temperature Rating
140 Deg F
Warranty
3 Year
Overall Dimensions
24 Inch Diameter x 24 Inch Height
Power Cord Length
10 Foot
Casing Material
Cast Iron
Float Type
Automatic
Impeller Design
Vortex
Impeller Material
Polymer
