Home  >  Plumbing  >  Pumps  >  Sewage  > LSG202A LIBERTY 2HP GRINDER

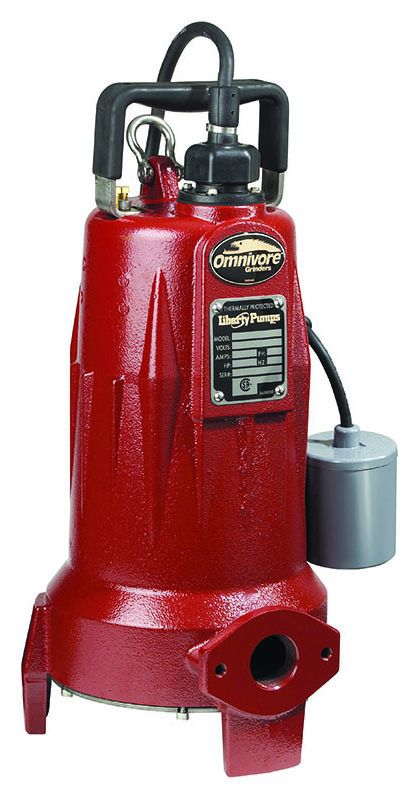

LSG202A LIBERTY 2HP GRINDER PUMP 208-230V 1PH

Item #: 74181
Manufacturer Item: LSG202A
Manufacturer: TCG - LIBERTY PUMPS
1-1/4" Discharge, NPT, 50 GPM, 2 HP, 3450 RPM, 208/230 VAC 60 Hz 1-Phase, 25' Cord, Submersible, 1-Stage, Grinder Pump
74181

Upper and Lower Ball Bearings

1-Piece Uni-Body Cast Iron Housing

Back Vanes on Impeller and Spiraled Bottom Plate for Superior Solids Clearing

Clog-Free Volute Design

Designed for Maximum Heat Dissipation and Cool Motor Operating Temperature

Sewage

Type
Submersible, Automatic, 1-Stage
Applicable Standard
CSA (Canada and US), SSPMA
Discharge Head
110 Foot
End Connection
Threaded
Flow Rate
50 GPM at 10 Foot
Housing Material
Class 25 Cast Iron
Inclusions/Features
300 Series Stainless Steel Impeller, Advanced V-Slice Cuttin
Input Supply Rating
208/230 Volt AC 60 Hertz 1-Phase 15 Amp
Motor Type
Oil Filled, Class B Insulation and NEMA B Design
Power Rating
2 HP
Shaft Material
300 Series Stainless Steel
Shaft Seal Details
Unitized Silicon Carbide Mechanical Seal
Speed Rating
3450 RPM
Temperature Rating
140 Deg F (Liquid), 221 Deg F (Stator), 221 Deg F (Thermal O
Warranty
3 Year
Overall Dimensions
9-1/2 Inch Width x 19-1/2 Inch Height
Power Cord Length
25 Foot
Casing Material
Class 25 Cast Iron
Application
Commercial and Residential Sewage
Cutter Material
440 Stainless Steel
Location Description Available
0051 Columbus 2.0
0052 Bloomington 1.0
0053 Indianapolis 1.0
0054 Muncie 0.0
0055 South Bend 0.0
0056 Marion 1.0
