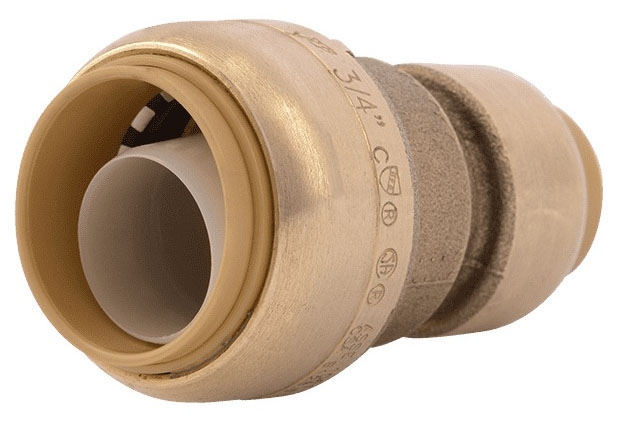

U058LF SHARKBITE 3/4X1/2 STRAIGHT COUPLING

Item #: 76261
Manufacturer Item: U058LF
Manufacturer: TCG - RELIANCE WORLDWIDE
3/4" x 1/2", Push-Fit x Push-Fit, 200 PSI, Lead-Free, Natural DZR Brass, Reducing, Coupling
0.00
This item is discontinued
Quantity Price
1 0.00
76261

It is the Easiest Way to Join Copper, CPVC or PEX Pipe in any Combination with No Soldering, Clamps, Unions or Glue

The Tube Shall be Inserted into the SharkBite PTC Fitting in the First Stage through a Release Collar and then through a Stainless Steel Grab Ring

The Grab Ring has Teeth that Open Out and Grip onto the Tube

At the Second Stage the Tube Shall be Pushed through an O-Ring Protector Which Aligns the Pipe

A Specially Formulated EPDM O-Ring Shall be Compressed Between the Wall of the Fitting and the Tube before the End of the Tube Reaches the Tube Stop

Only When the Pipe has Passed through the O-Ring and Reached the Pipe Stop Shall a Secure Joint be Created

Instant Push-Fit Connection for Increased Ease-of-Use

Integral Pipe Liner for PEX Installations

Design Certified and Agency Listed

Approved to be Used Underground and Behind Walls without Access Panel

Lead-Free

Push Fittings & Valves & Tools

Applicable Standard
ASSE 1061, UL 263, CSA B125.3, CAN/ULC S101/S102.2, NSF/ANSI
End Connection
Push-Fit x Push-Fit
Pressure Rating
200 PSI
Application
Underground, Potable Water, Hydronic Heating Water Distribut
Temperature Rating
200 Deg F
Type
Reducing
Material
DZR Brass
Finish
Natural
Size B
1/2 Inch
