Home  >  Supplies  >  Installation  >  Condensate Pumps  > VCMA20ULS LITTLE GIANT

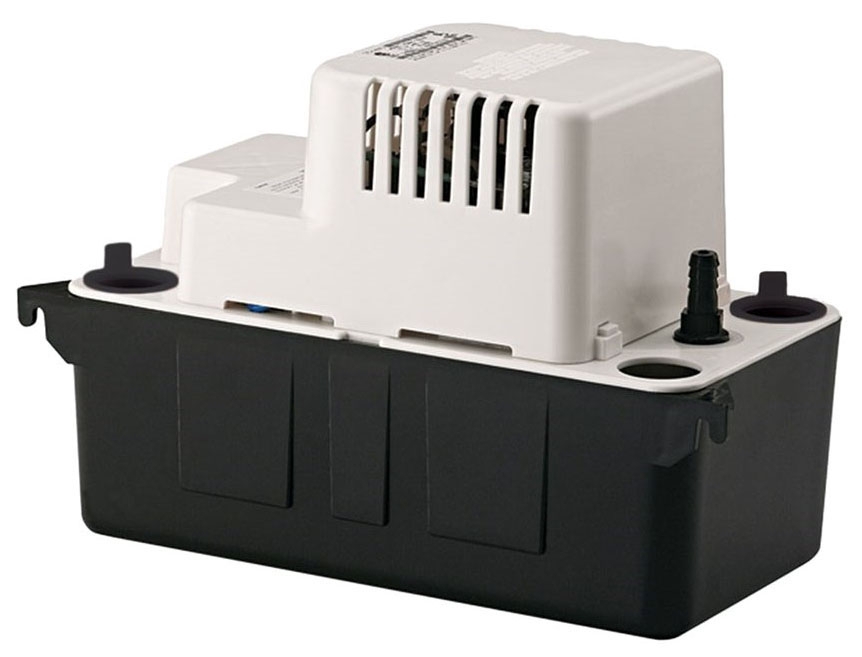

VCMA20ULS LITTLE GIANT CONDENSATE PUMP 230V 554455

Item #: 78338
Manufacturer Item: 554455
Manufacturer: WATERMARK ENGINEERED PRODUCT S
(3) 1-1/8", 3/8" OD Barbed, 80 GPH at 1', 1/2 Gallon Capacity, ABS, Vertical Centrifugal, Condensate Removal Pump
0.00
Contact us to order
Quantity Price
1 0.00
78338

Vertical Centrifugal Pump Design

Automatic Start and Stop Operation

Removable Pump Float Locking Tab for Safety During Transportation

Built-In Wall Mount Tabs on Tank

Removable Pump Float Locking Tab for Safety During Transportation

condensate pumps

Discharge Head
1 to 20 Foot
Input Supply Rating
75 Kilowatt at 230 Volt AC 50/60 Hertz 0.5 Amp
Flow Rate
80 GPH at 1 Foot
Overall Dimensions
11 Inch Length x 5 Inch Width x 7 Inch Height
Type
Vertical Centrifugal
Applicable Standard
CSA (Canada and US)
Application
Air Conditioning, Refrigeration, Dehumidification
Power Rating
1/30 HP
Reservoir Capacity
1/2 Gallon
Temperature Rating
140 Deg F
Housing Material
ABS Plastic
Power Cord Length
6 Foot
Casing Material
ABS Plastic
Pressure Rating
7.4 PSI
Impeller Material
Glass Filled Polypropylene
Motor Type
Thermally Protected, Fan Cooled
Shaft Material
Stainless steel
Reservoir Material
ABS Plastic
End Connection
Barbed
Reservoir Inlet Size
(3) 1-1/8 Inch
