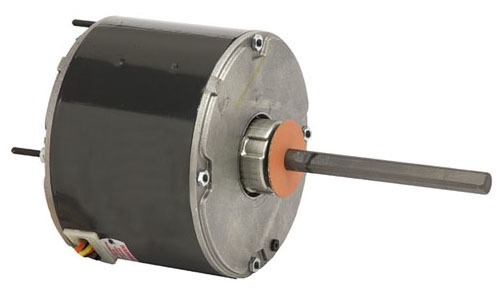

Actions1873 NIDEC CONDENSER MOTOR 1/6hp 825rpm 208-230V
Item #:
82991
Manufacturer Item: 1873
Manufacturer:
TCG - US MOTORS BY NIDEC
1/6 HP, 208 to 230 VAC 60 Hz 1-Phase, 1 A, 825 RPM, 1-Speed, Reversible, TEAO, Condenser Fan Motor
Sleeve Bearings have All Angle Thrust System
Suitable for Use with 370 Volt Capacitor
Continuous Duty
30 Inch Leads
Automatic Reset Thermal Overload Protector
Extended Stud
Hubless Lead End
Drain Holes Both End
Reversible Rotation
condenser fan motors
Power Rating
1/6 HP
Voltage Rating
208 to 230 Volt AC 1-Phase
Motor FLA
1 Amp
Speed Rating
825 RPM
Frequency Rating
60 Hertz
Number of Speeds
1
Enclosure Type
TEAO
Application
Commercial/Residential Condenser Unit Fan Motor
Insulation Class
B
Reversible
Yes
Mounting
Band, Stud
Weight
12 Pound
Service Factor
1
