Home  >  Plumbing  >  Pumps  >  Sump  > 257 LIBERTY 1/3HP SUMP PUMP

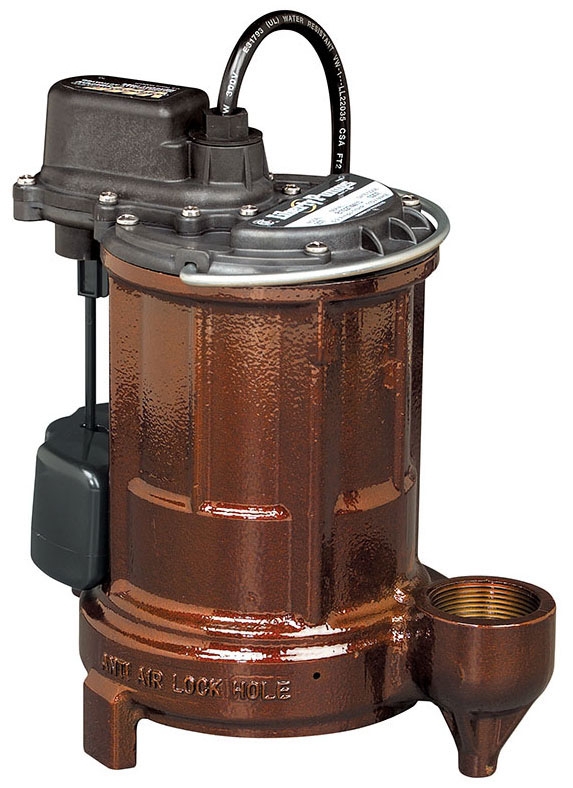

257 LIBERTY 1/3HP SUMP PUMP VMF 115V 5.2A 1-1/2 DISCHARGE

Item #: 92638
Manufacturer Item: 257
Manufacturer: TCG - LIBERTY PUMPS
1-1/2" Discharge, 44 GPM, 1/3 HP, 3450 RPM, 115 VAC 60 Hz, 10' Cord, Submersible, Automatic, Sump/Effluent Pump
92638

Unique 1-Piece Cast Body Eliminates Motor Housing Seal Ring

Durable Epoxy Powder Coated Finish

Vortex Style Impeller

Permanently Sealed and Lubricated Bearing

Quick-Disconnect 10 Foot Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seal to Motor

Heavy Duty VMF Switch on Vertical Float Model

Sump

Applicable Standard
CSA (Canada and US), SSPMA, ISO 9001
Housing Material
Class 25 Cast Iron
Overall Dimensions
9.5 Inch Length x 6.5 Inch Width x 10.7 Inch Height
Type
Submersible, Automatic
Warranty
3 Year
Input Supply Rating
115 Volt AC 60 Hertz 5.2 Amp
Power Cord Length
10 Foot
Power Rating
1/3 HP
Temperature Rating
140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal O
Impeller Design
Vortex
Motor Type
Class B Insulation, Oil Filled Permanent Split Capacitor, NE
Shaft Material
Stainless steel
Speed Rating
3450 RPM
Discharge Head
23 Foot
Float Type
Integral Vertical
Impeller Material
Polymer
Flow Rate
44 GPM at 5 Foot
Casing Material
Class 25 Cast Iron
Shaft Seal Details
Engineered Double Lip Seal with Stainless Steel Spring
