Home  >  Plumbing  >  Expansion Tanks  >  Bladder Tanks  > WX-203PA PRO ACCESS WELL-X

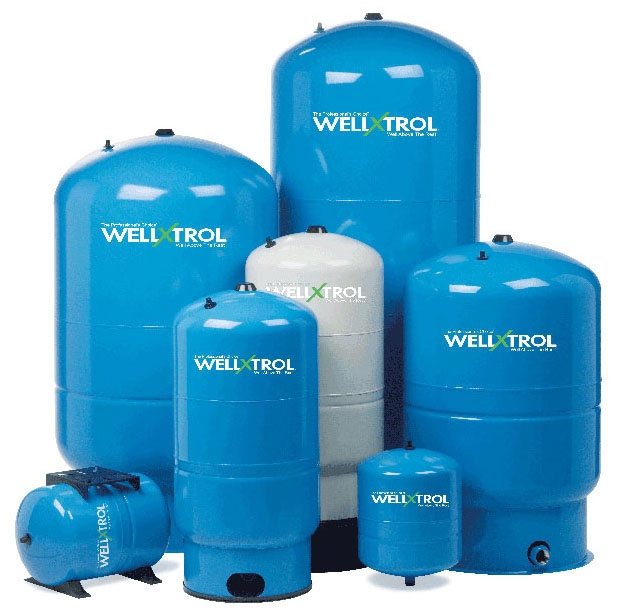

WX-203PA PRO ACCESS WELL-X TROL TANK 32GAL 399612

Item #: 9436
Manufacturer: TCG - AMTROL, INC.
15" x 47", 1" FPT, 32 Gallon, 150 PSI, Lead-Free, Tuf-Kote HG Blue Deep Drawn Steel, In-Line, Diaphragm Well Tank
9436

Strongest Tank Design Featuring Deep Drawn Steel and Multi-Dome Construction

Welded Air Stem to Help Eliminate Leaks

Antimicrobial Liner Neutralizes Bacteria on Contact

Amtrol Inc Invented the First Pre-Pressurized Well Tank over 50 Years Ago

This Revolutionary Product Featured an Innovative Design Using a Hoop Ring and Groove to Lock the Diaphragm, Liner and Shell Together

Lead-Free

Made in USA

Bladder Tanks

Applicable Standard
NSF/ANSI 61, IAPMO, ISO 9001
Application
Residential Well Water System
Diaphragm Material
Heavy Duty Butyl
Inclusions/Features
Projection Welded Air Valve, Turbulator Water Circulator, St
Inlet/Outlet Connection
1 Inch Female Threaded x 1 Inch Female Threaded
Precharge Pressure
38 PSI
Pressure Rating
150 PSI
Tank Capacity
32 Gallon
Tank Dimensions
15 Inch Diameter x 47 Inch Height
Tank Inner Lining
Antimicrobial
Tank Warranty
7 Years Limited
Temperature Rating
200 Deg F
Type
In-Line
Tank Material
Tuf-Kote HG Blue Deep Drawn Steel
