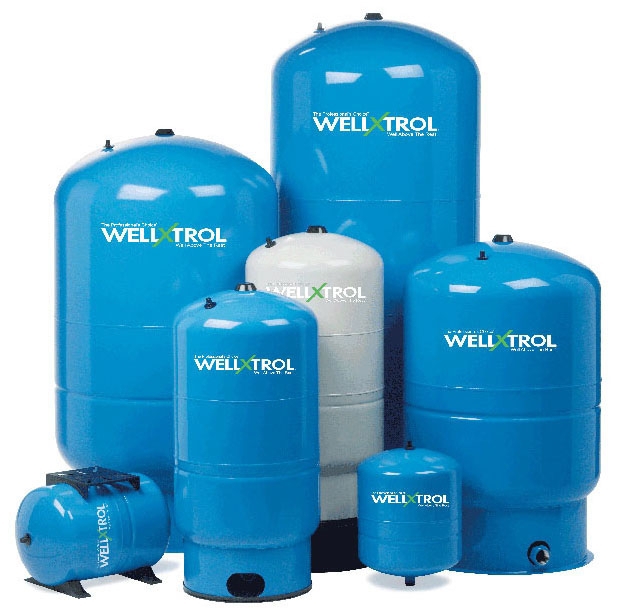

ActionsWX-250PA PRO ACCESS WELL-X TROL TANK 44GAL 399630
Item #:
96943
Manufacturer Item: AMTWX250
Manufacturer:
TCG - AMTROL, INC.
22" x 36", 1-1/4" FPT, 44 Gallon, 150 PSI, Lead-Free, Tuf-Kote HG Blue Deep Drawn Steel, In-Line, Diaphragm Well Tank
Strongest Tank Design Featuring Deep Drawn Steel and Multi-Dome Construction
Welded Air Stem to Help Eliminate Leaks
Antimicrobial Liner Neutralizes Bacteria on Contact
Amtrol Inc Invented the First Pre-Pressurized Well Tank over 50 Years Ago
This Revolutionary Product Featured an Innovative Design Using a Hoop Ring and Groove to Lock the Diaphragm, Liner and Shell Together
Lead-Free
Made in USA
Bladder Tanks
Applicable Standard
NSF/ANSI 61, IAPMO, ISO 9001
Application
Residential Well Water System
Diaphragm Material
Heavy Duty Butyl
Inclusions/Features
Projection Welded Air Valve, Turbulator Water Circulator, St
Inlet/Outlet Connection
1-1/4 Inch Female Threaded x 1-1/4 Inch Female Threaded
Precharge Pressure
38 PSI
Pressure Rating
150 PSI
Tank Capacity
44 Gallon
Tank Dimensions
22 Inch Diameter x 36 Inch Height
Tank Inner Lining
Antimicrobial
Tank Warranty
7 Years Limited
Temperature Rating
200 Deg F
Type
In-Line
Tank Material
Tuf-Kote HG Blue Deep Drawn Steel
