Home  >  Plumbing  >  Valves  >  General Plumbing  > 114-613NL LEGEND 3/8X1/2

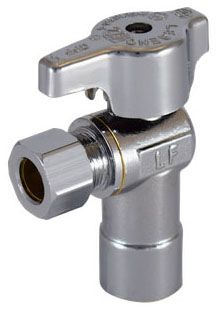

114-613NL LEGEND 3/8X1/2 SWEAT ANGLE STOP T-595NL

Item #: 97895
Manufacturer Item: 114-613NL
Manufacturer: TCG - LEGEND VALVE & FITTING
1/2" x 3/8", Soldered x Compression, 125 PSI, Lead-Free, Forged Brass Alloy, 1/4 Turn, Angle, Ball, Supply Stop Valve
This item has been replaced by
You must be logged in to order this item.
Log in here
97895

Quarter Turn, Self-Cleaning Ball Valve Design Resists Mineral and Scale Build-Up, Assuring Positive Shut-Off and Re-Opening

The Ball-Seat Operation and Dual O-Ring Stem Seal Features Outperform Traditional Multi-Turn Stop Designs

Compact, Chrome Plated, Forged Brass Bodies are Both Durable and Decorative

Lead-Free

General Plumbing

Inclusions/Features
Plated Carbon Steel Handle Screw, Brass Stem/Ball/End Adapte
Body Material
UNS C46400 Forged Brass Alloy
End Connection
Soldered x Compression
Pressure Rating
125 PSI Non-Shock CWP
Applicable Standard
ANSI/NSF 61/61G/372, ISO 9002
Type
Angle, Ball
End to End Distance
2.56 Inch
Application
Potable Water, Plumbing
Actuation Type
1/4 Turn
Handle Material
ASTM B86 Chrome Plated Zinc
Seat Material
EPDM
Temperature Rating
120 Deg F
