Home  >  Plumbing  >  Valves  >  Flush  > 3082653 SLOAN 186-1.5 XL REGAL

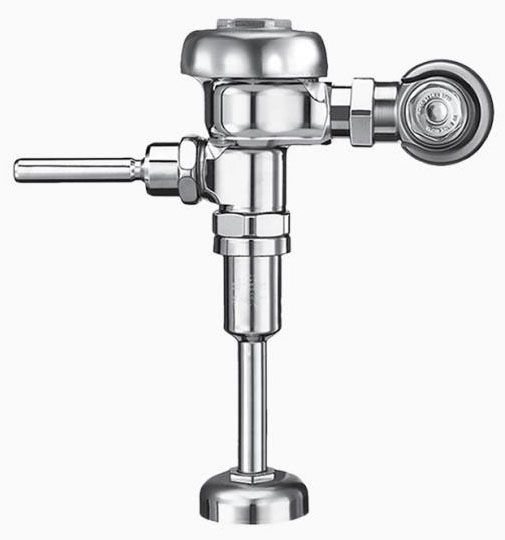

3082653 SLOAN 186-1.5 XL REGAL URINAL FLUSHOMETER 3/4 TOP SPUD 1.5 GPF

Item #: 99494
Manufacturer Item: 3082653
Manufacturer: SLOAN VALVE COMPANY
3/4" IPS, 1.5 GPF, Semi-Red Brass, Oscillating Non-Hold Open Handle, Diaphragm, 1-Flush, Urinal Flushometer
99494

Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation

ADA Compliant

Flush

Actuation Type
Oscillating Non-Hold Open Handle
Applicable Standard
ADA, ANSI/ASME 112.19.2, ASSE 1037, CUPC, BAA
Body Configuration
Top Spud
Body Material
Semi-Red Brass
End Connection
IPS
Flow Rate
1.5 GPF
Inclusions/Features
Control Stop Plug, Sweat Solder Adapter and Cover Tube, Cast
Mounting Type
Top Mount
Sweat Solder Kit Supplied
Yes
Type
Diaphragm, Exposed, Manual, 1-Flush
Used On Item
Urinal
Handle Material
Metal
Used On Model/Brand
Regal
