Home  >  HVAC Service Parts  >  Heating Parts Service  >  Fan and Limit controls  > 3L09-26 WHITE RODGERS LIMIT

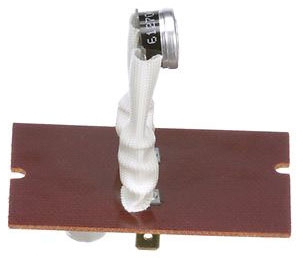

3L09-26 WHITE RODGERS LIMIT CONTROL 180/160 1 7/8 BOARD MOUNT

Item #: 103712
Manufacturer Item: 3L09-26
Manufacturer: AD - COPELAND COMFORT CONTROLS
160 Deg F Cut-In/180 Deg F Cut-Out, Board Mount, Open on Rise, Automatic Reset, Snap Disc Limit Control
5234

Line Voltage Connections Pre-Wired

Energy Limiting Class II Transformer Design

Color Coded Pre-Stripped Leads

Low Voltage Connections on Terminal Board

fan center

Approval
UL
Contact Configuration
SPDT
Contact Voltage Rating
120/240 Volt AC
Mounting
4 Inch x 4 Inch Junction Box
Type
AC Operated
Contact Current Rating
13.8 Amp at 120 Volt AC/6.9 Amp at 240 Volt AC (Full Load),
Terminal Type
Color Coded Lead (Primary), 5-Screw (Secondary)
Location Description Available
0051 Columbus 7.0
0052 Bloomington 2.0
0053 Indianapolis 2.0
0054 Muncie 5.0
0055 South Bend 0.0
0056 Marion 1.0
