> 50M56-743 WHITE RODGERS

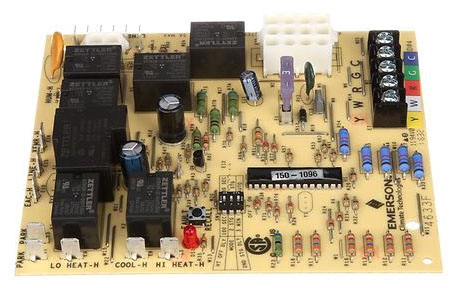

50M56-743 WHITE RODGERS FURNACE MODULE
Item #:
127747
Manufacturer Item: 50M56-743
Manufacturer:
TCG - COPELAND CONTROL SUPPLY
25 VAC, Nitride Igniter, 4 Trial, Natural Gas/Liquid Propane, 1-Stage, Hot Surface, Ignition Furnace Control Module
System Diagnostic LED with Fault Recall
Multi-Speed Circulator
One or 2-Stage Gas Valve
Direct OEM Replacements Designed for High Volume Major Brand Controls
Diagnostic LED Indicators Streamline Installation and System Troubleshooting
Factory Standard Safety Timings and Adjustable Fan Delay Options
Replaceable Automotive Style Fuse
Control Boards-Heating Parts Service
Type
Universal, 1-Stage, Multi-Speed, Hot Surface
Temperature Rating
-40 to 176 Deg F
Application
Controls Gas Valve, Igniter, Blower, Inducer and Air Cleaner
Valve Rating
0.6 Power Factor, 1.5 Amp at 25 Volt AC 50/60 Hertz
Ignition Source
Nitride Igniter
Ignition Trial Time
2 Second
Fuel Type
Natural Gas, Manufactured, Mixed, Liquefied Petroleum and Li
Flame Failure Response Time
2 Second
Ignition Sequence
4 Trial
Flame Sense Type
Integrated
Approval
CSA (Canada and US)
Power Rating
25 Volt AC 50/60 Hertz
Pre-Purge Time
30 Second
