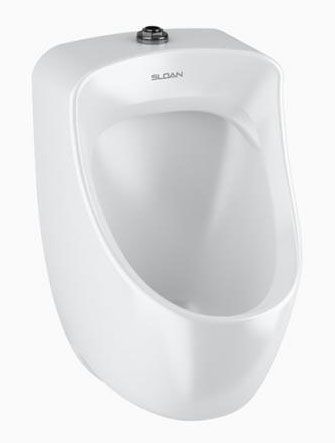

1107006 SLOAN SU-7006-A-1.0 WASH DOWN URINAL 3/4 TOP SPUD WHITE 1.0GPF

Item #: 132589
Manufacturer Item: 1107006
Manufacturer: SLOAN VALVE COMPANY
14-3/16" x 14-3/4" x 23-1/2", 1 GPF, White, Vitreous China, Top Spud, Small, Flushing Rim, Washdown Flush Action, Urinal
This item has been replaced by
You must be logged in to order this item.
Log in here
132589

Designed to Maximize and Complement Sloan Flushometers

Small Size and Clean Lines Fits a Large Variety of Applications and Restroom Looks

Durable, Hygienic Vitreous China Construction

Vandal Resistant Stainless Steel Strainer Included

ADA Compliant

Commercial-Urinals

Applicable Standard
ADA, ASME A112.19.2/CSA B45.1, ANSI A117.1, CUPC, IAPMO
Color/Finish
White
Depth
14-3/4 Inch
Gallons per Flush
1
Height
23-1/2 Inch
Inclusions/Features
Mounting Hardware, Vandal Resistant Strainer Assembly, Integ
Inlet Connection
3/4 Inch IPS Top Spud
Inlet/Outlet Location
Top Spud Inlet x Flange Outlet
Length
14-3/16 Inch
Material
Vitreous China
Mounting Type
Wall
Outlet Connection
2 Inch Threaded
Recommended Working Pressure
25 PSI (Flow), 80 PSI (Static)
Rough-In
18-3/8 Inch (Standard), 11-3/8 Inch (ADA)
Type
Small, Flushing Rim, Washdown Flush Action
