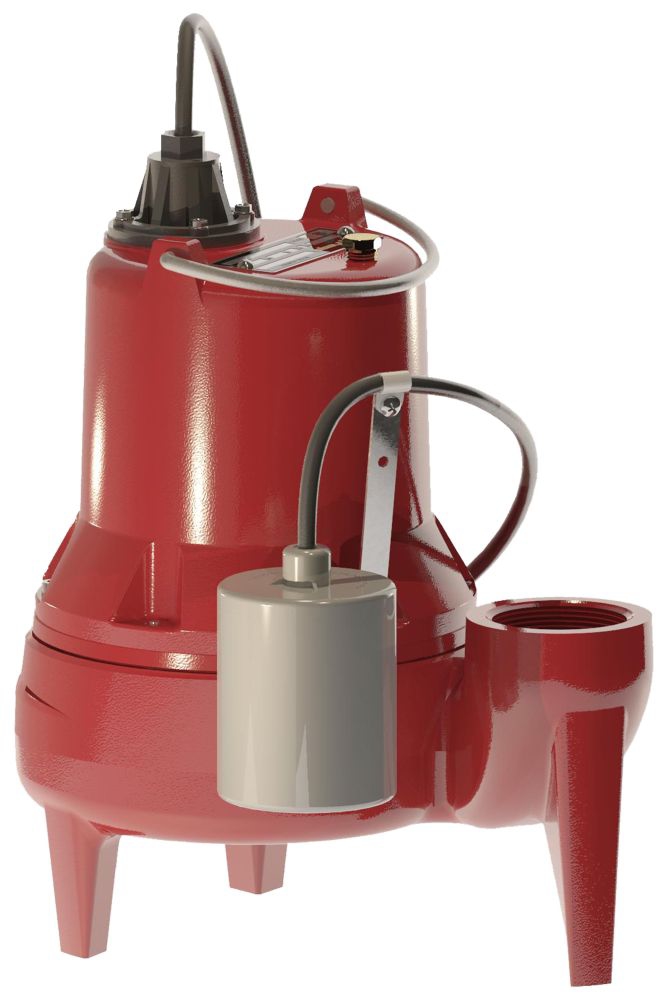

LE51A LIBERTY 1/2HP SEWAGE PUMP 115V 12A 2 DISCHARGE

Item #: 13933
Manufacturer Item: LE51A
Manufacturer: TCG - LIBERTY PUMPS
2" Discharge, NPT x NPT, 141 GPM, 1/2 HP, 1725 RPM, 115 VAC 60 Hz 1-Phase, 10' Cord, Submersible, Automatic, Sewage Pump
13933

Heavy Cast Iron Construction

Oil Filled, Thermally Protected Motor

Permanently Lubricated Ball Bearing

2-Vane, Corrosion Resistant HYTREL Impeller

Quick-Disconnect 10 Foot Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seal to Motor

Sewage

Type
Submersible, Automatic
Applicable Standard
UL, CSA (Canada and US), SSPMA
Discharge Head
24 Foot
End Connection
Threaded x Threaded
Flow Rate
141 GPM at 5 Foot
Housing Material
Class 25 Cast Iron
Inclusions/Features
Gray Class 25 Cast Iron Volute/Leg/Housing, Stainless and Br
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 12 Amp
Motor Type
Oil Filled Permanent Split Capacitor, Class B Insulation and
Power Rating
1/2 HP
Shaft Material
Stainless steel
Shaft Seal Details
Unitized Ceramic Carbon Mechanical Seal
Speed Rating
1725 RPM
Temperature Rating
140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal O
Warranty
3 Year
Overall Dimensions
10.9 Inch Length x 7.5 Inch Width x 12 Inch Height
Power Cord Length
10 Foot
Casing Material
Class 25 Cast Iron
Float Type
Adjustable, Wide Angle, Piggyback
Impeller Design
2-Vane, Semi-Open
Impeller Material
Thermoplastic Elastomer
