Home  >  Plumbing  >  Pumps  >  Sewage  > LOWPRO41LP LIBERTY PUMP 4

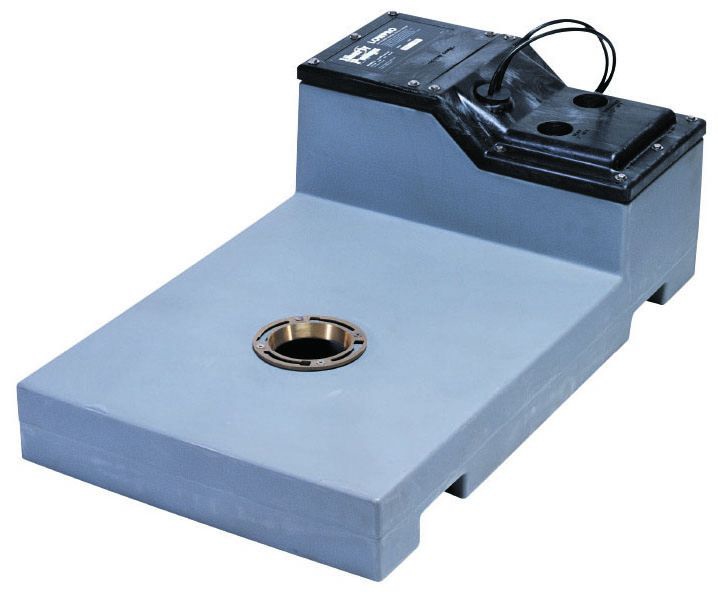

LOWPRO41LP LIBERTY PUMP 4 10 HP 115V SINGLE PHASE

Item #: 50247
Manufacturer Item: LOWPRO41LP
Manufacturer: TCG - LIBERTY PUMPS
2" Discharge, NPT, 127 GPM, 115 VAC 60 Hz, Low Profile, Freestanding, Sewage System
50247

Durable 1-Piece Poly Tank with Split Cover Design Allows Access to Switch Area without Disturbing Discharge and Vent Piping

4/10 HP Cast Iron Sewage Pump, 2 Inch Solids Handling

Pre-Mounted Float Switch

Schedule 80 PVC Discharge Pipe (Internal) 2 Inch Check Valve

Closet Flange with Extra Spacers for Optional Floor Heights

Pipe Grommet Seal for Additional 2 Inch Inlet Pipe from a Shower or Sink

Engineered Water Jet Provides a Powerful Spray within the Tank to Help Break Down Solids and Reduce Potential Jamming

Flow Adjusted Pump Maximizes Pump Cycle Time and Increases Pump Life

Sewage

Type
Low Profile, Freestanding
Applicable Standard
CSA (Canada and US)
Discharge Head
19 Foot
End Connection
Threaded
Flow Rate
130 GPM
Housing Material
Class 25 Cast Iron
Inclusions/Features
Pre-Mounted Float Switch, Closet Flange, Schedule 80 PVC Dis
Input Supply Rating
115 Volt Ac 60 Hertz 12 Amp
Motor Type
Oil Filled, Hermetically Sealed, Thermal Overload Protection
Power Rating
4/10 HP
Shaft Material
Stainless steel
Shaft Seal Details
Carbon/Ceramic
Speed Rating
1725 RPM
Temperature Rating
140 Deg F ( Liquid)
Warranty
3 Year
Overall Dimensions
42 Inch Length x 24-1/2 Inch Width x 14-5/8 Inch Height
Casing Material
Cast Iron
Float Type
Pre-Mounted
Impeller Design
Vortex
Impeller Material
Polymer
