Home  >  Supplies  >  Installation  >  Condensate Pumps  > VCMA20UL LITTLE GIANT

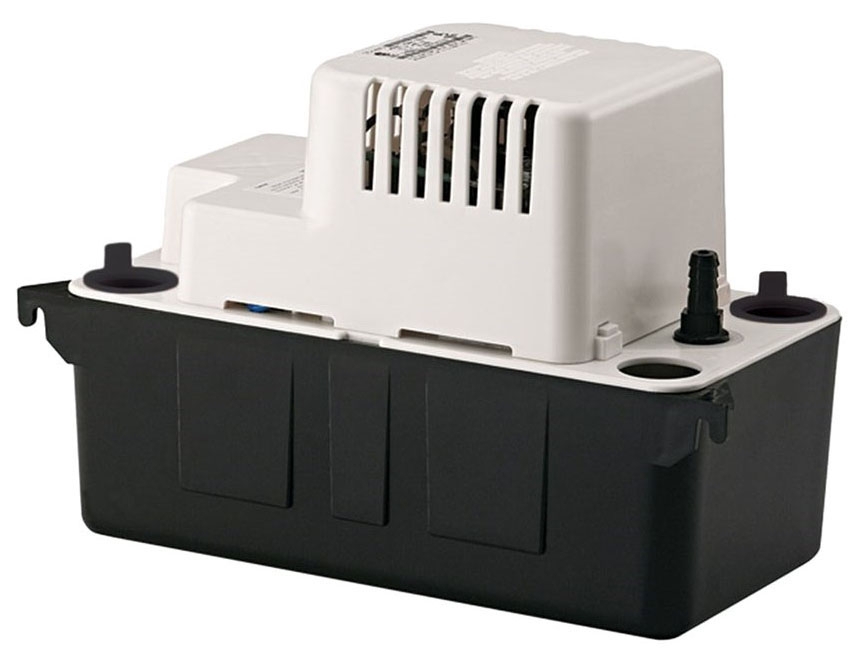

VCMA20UL LITTLE GIANT CONDENSATE PUMP 554421

Item #: 68764
Manufacturer Item: 554421
Manufacturer: TCG - WATERMARK ENGINEERED
3/8" Discharge, Barbed, 80 GPH, 1/30 HP, 8.7 PSI, 115 VAC 60 Hz, 6' Cord, Vertical Centrifugal, Condensate Pump
You must be logged in to order this item.
Log in here
68764

Vertical Centrifugal Pump Design

Automatic Start and Stop Operation

Thermal Overload Protection

Built-In Wall Mount Tabs on Tank

Removable Pump Float Locking Tab for Safety During Transportation

Models Equipped with Float Activated Switch for Automatic High-Level Water Detection

condensate pumps

Discharge Head
20 Foot
Input Supply Rating
115 Volt AC 60 Hertz 1.5 Amp
Flow Rate
80 GPH at 1 Foot
Inclusions/Features
3/4 Inch Outer Diameter Barbed Discharge Adapter, Overflow D
Overall Dimensions
11 Inch Length x 5 Inch Width x 7 Inch Height
Type
Automatic, Vertical Centrifugal
Applicable Standard
CSA (Canada and US)
Application
Air Conditioning, Refrigeration, Dehumidification Equipment,
Power Rating
1/30 HP
Reservoir Capacity
1 or 2 Gallon
Temperature Rating
140 Deg F
Housing Material
ABS Plastic
Power Cord Length
6 Foot
Casing Material
ABS Plastic
Pressure Rating
8.7 PSI
Impeller Material
Glass-Filled Polypropylene
Motor Type
Thermally Protected, Fan Cooled
Shaft Material
Stainless steel
Reservoir Material
ABS Plastic
End Connection
Barbed Outlet
Reservoir Inlet Size
(3) 1-1/8 Inch
