Home  >  HVAC Service Parts  >  Heating Parts Service  >  Relays-Heating Parts Service  > R8845U1003/U HONEYWELL

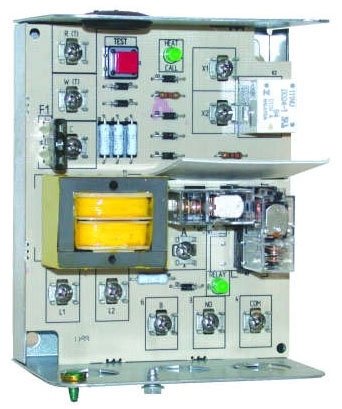

R8845U1003/U HONEYWELL RELAY

Item #: 75544
Manufacturer Item: R8845U1003/U
Manufacturer: TCG - RESIDEO (HONEYWELL/ADEMC
120 VAC 60 Hz, 24 VAC Coil, SPST, 2 or 3-Wire Circuit, Universal Switching Relay
75544

Replaceable Socketed Relay

2-Troubleshooting LED

Push-to-Test Button

Replaceable Transformer Fuse

Low-Voltage Contact Rating for Powerpile Applications

Long-Life DC Relay Drive Control Technology

Relay for Use with External 24 Volt AC or 24 Volt DC Supply with Line-Voltage Control or with Internal 24 Volt Transformer Supply

relays-Heating Parts Service

Coil Voltage
24 Volt AC
Contact Configuration
SPST
Contact Current Rating
7.4 Amp (Full Load), 44.4 Amp at 120 Volt AC (Line Voltage)
Terminal Type
2 or 3-Wire Circuit
Contact Voltage Rating
120 Volt AC 60 Hertz
Type
Universal
Approval
UL, CSA
