Home  >  Plumbing  >  Pumps  >  Circulating  > UPS15-58FC GRUNDFOS 3 SPEED

UPS15-58FC GRUNDFOS 3 SPEED CAST IRON PUMP LESS FLANGE WITH CHECK VALVE 59896341

Item #: 80198
Manufacturer: GRUNDFOS PUMPS CORPORATION
15/26" Suction/Discharge, Flanged x Flanged, 0.117 HP, 115 VAC 0.75 A, 145 PSI, 0 to 17 GPM, Cast Iron, Circulator Pump

Ceramic Shaft and Radial Bearings

Carbon Axial Bearing

Stainless Steel Rotor Can and Bearing Plate

Corrosion-Resistant Impeller, Composite, PES

Cast Iron Pump Housing

Circulating

Applicable Standard
UL, CSA
Casing Material
Cast Iron
End Connection
Flanged x Flanged
Inclusions/Features
Check Valve
Motor Type
2-Pole
Power Rating
0.117 HP
Pressure Rating
145 PSI
Temperature Rating
36 to 230 Deg F
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 0.75 Amp

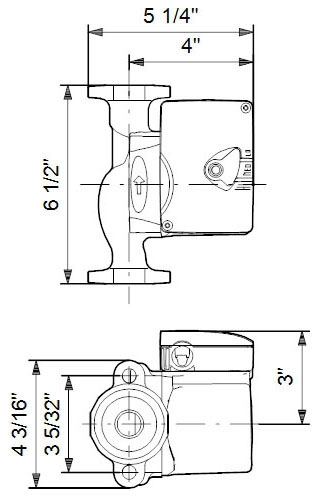

Overall Dimensions
6-1/2 Inch Length x 5-1/4 Inch Height
Application
Water Circulation
Impeller Design
Composite
Impeller Material
PES
Shaft Material
Ceramic
Flow Rate
0 to 17 GPM
Discharge Head
0 to 19.5 Foot
