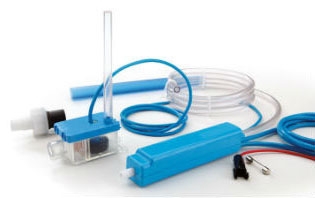

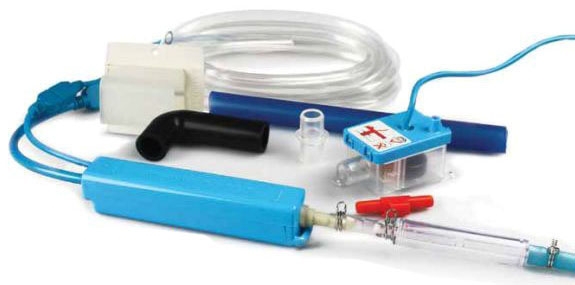

83809 RECTORSEAL ASP-MA-UNI ASPEN MINI SPLIT CONDENSATE PUMP 100-250VAC

Item #: 97046
Manufacturer Item: 83809
Manufacturer: TCG - RECTORSEAL, LLC
100 to 250 VAC, 16W, 0.2 A, 3.2 GPH, 49500 BTU/Hr, Aqua, Condensate Pump Kit

Ultra-Slim Profile

Self-Priming

Integral Hanging Loop and Separate Reservoir Facilitates Attachment in Vertical Application

Modular Terminals for Fast Connection

Fully Potted Electronic

Quick and Easy to Install

Fits Inside Evaporator or Lineset Cover

condensate pumps

Discharge Head
33 Foot
Input Supply Rating
100 to 250 Volt AC 0.2 Amp
Flow Rate
3.2 GPH at Zero Head, 1.6 GPH at 33 Foot Head
Inclusions/Features
Pump Assembly, In-Line Reservoir, 8 Inch x 5/8 Inch Inner Di
Overall Dimensions
6.5 Inch Length x 1.125 Inch Width x 1.125 Inch Height
Type
Self-Priming
Applicable Standard
CSA (US)
Application
Mini-Split
Power Rating
16 Watt
Reservoir Capacity
49500 BTU/Hour
Temperature Rating
104 Deg F
Power Cord Length
6 Foot
